Reference the way select of Skimmer

First of all , To select of Skimmer, we recommend to consider about two matter as following . These two matter are

just reference for you . We wish that you would try to consider about these by yourself .

１．Ideal circulation water volume of main pump (L/h)

２．Ideal circulation water volume of Skimmer (L/h)

1.Ideal circulation water volume of main pump (L/h)

Main Coral

4 cycle ～ 6 cycle

Main Fish

2 cycle ～ 3 cycle

Example　： If total water volume 240L about main coral , Ideal circulation water volume of main pump

is 960L/h～1,440L/h . and about main fish is 480L/h ～ 720L/h .

These water volume are actual flow volume , not depend on pump label showing volume

Because pump have been getting various resistance from .. pipe size ..elbow ..UV ..chiller ... etc

So , there are many case that only turn back water 1/3 ～ 1/6 . We recommend that it's

better to check actual water volume turn back on your tank .(We have flow sensor CORRENTE)

Main Coral

Choice main pump 6 turn

6 cycle X 240L = 1440L/h

Actual pump ability 1/6 assume

1440L/h X 6 = 8680L/h

Final choice pump

10000 L/h pump

Main Fish

Choice main pump 3 turn

3 cycle X 240L = 720L/h

Actual pump ability 1/6 assume

720L/h X 6 = 4320L/h

Final choice pump

5000 L/h pump

Thick words is Ideal circulation water volume of main pump

2.Ideal circulation water volume of Skimmer (L/h) -- This volume is half of circulation water volume

Main Coral

Ideal circulation water volume of Skimmer

1440L/h / 2 = 720L/h

Main Fish

Ideal circulation water volume of Skimmer

720L/h / 2 = 360L/h

Blue color L/h is Ideal circulation water volume of Skimmer

Result : This Example is 240L Water volume , 6 turn L/h .

Our Skimmer have 1000 L/h circulation water volume . so App ... It's stable for 350L water volume tank .

But please remind .............How many times you wish circulation water volume of main pump ?

Need 6 times turn back ? This level is just "Ideal" but from many aquarists ... if you think one turn back

is enough , so our Skimmer have power till 2000L water tank !!

Characteristics of 雲海 1000 Skimmer

White Color

Red Color

Body diameter　：　Φ150

Base size　：　190mm(L) x 180mm(W)

Height　：　590mm(H)

１．Inlet Water Control

Inlet Water Control can control balance of Water volume coming from Venturi and Air volume . Actually this balance is most importance for

Skimmer to using with stable or using Max performance .

Please see the photo and video .There are 6 hole on back side and can control these 6 hole open or close . These 6 hole are connecting to the

needle housing . So can find " Balance of Water volume and Air volume " Then this Skimmer can build most good air bubble .

２．Venturi Control

Venturi Control can control Venturi diameter size . This point is also very importance for Skimmer to using with stable or using Max .

performance for each customer tank .

Please see the photo and video . There is 1 hole in center and can control Venturi size .

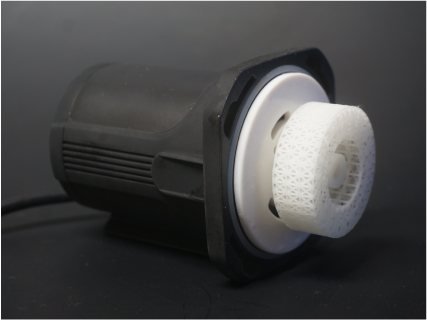

３．Mesh Needle

We have developed Mesh needle and using this for our Skimmer . Then can build Very fine bubble .

Our Skimmer named ” 雲海” by this very fine bubble . 雲海(UNKAI) mean is sea of clouds .

４．Suction Cup Dome

Our Suction Cup have dome on top . So , Stains will go out smoothly .

５．Gate Bar

Our Skimmer removed all pipe ...elbow ... valve . So, This Skimmer can save setting space .

６．DC Pump

Our Skimmer adopted DC pump , So can control power easily as well .

７．Height change parts (Option)

８．Long Neck 50（Option)

If you want to Change water level of Skimmer in Sump . you can add this	If you use this Long Neck 50(1 pc), can use Skimmer in App 300mm
parts .Our Skimmer is stable App 250mm +- deep ..	water level , is 2 pcs use , App 350mm...( can add some pcs) .or if you
This parts can add till 60mm by each 15mm .	want to use Skimmer more powerful .

"雲海"(UNKAI) is New Concept Skimmer . We wish that you would enjoy aquarium more with our Skimmer

UNKAI1000 SKimmer Instruction
